The Sure-Trac STBRC8216-GN-176 is a heavy-duty gooseneck roll-off dump trailer designed for professional-grade hauling and debris management. With a GVWR of 17,600 lbs and a payload capacity of 14,425 lbs, it’s built to handle demanding loads. The trailer features a 16-foot carrier deck and is compatible with multiple bin sizes, offering exceptional versatility. Its construction includes a W8x15 frame, W12x14 uprights, and a W10x12 horizontal arm for added strength. It’s equipped with dual 12K 2-speed dropleg jacks, oil bath hubs, slipper spring suspension, and 215/75R17.5 LRJ tires on black steel wheels. The hydraulic system uses a 3,000 PSI pump with a scissor hoist for power-up and power-down operation, supported by dual Group 31 deep cycle batteries. Additional features include LED lighting, a 7-pole RV plug, and a PPG industrial-grade poly primer and paint finish for durability.
Overall length: approximately 22 feet
Bed length: 16 feet
Bed width: 82 inches
GVWR: 17,600 lbs
Payload capacity: 14,425 lbs
Curb weight: 3,175 lbs
Frame: W8x15 steel
Uprights: W12x14 steel
Horizontal arm: W10x12 steel
Axles: Tandem 8,000 lb oil bath axles with slipper spring suspension
Tires: 215/75R17.5 Load Range J
Wheels: Black steel
Jacks: Dual 12K 2-speed dropleg jacks
Hoist: Hydraulic scissor hoist, power-up/power-down
Pump: 3,000 PSI hydraulic pump
Battery: Dual Group 31 deep cycle batteries

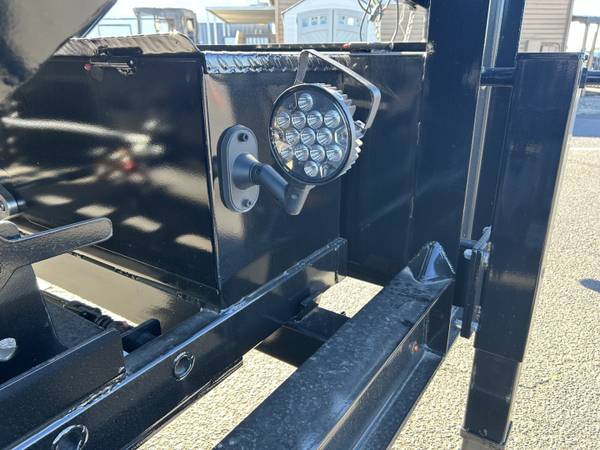

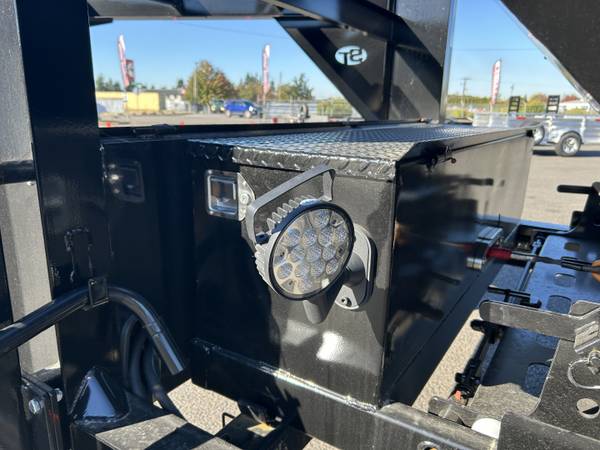

Electrical: 7-way RV plug with LED lighting
Finish: PPG industrial-grade poly primer and paint
Coupler: Gooseneck
Compatibility: Designed for roll-off bins
