DWYER Digital Industrial Pressure Gauge: 0 psi to 100 psi, For Liquids & Gases, - $85 (Eugene)
QR Code Link to This Post

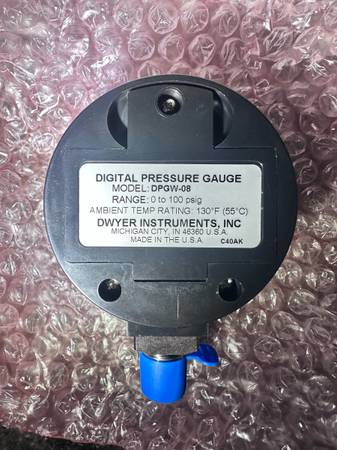

The Dwyer DPGW08 Digital Liquid Pressure Gauge 0-100 psi is a digital pressure gauge for liquids with the ability to select engineering units. It offers digital push-button zero, which reduces installation and service time. High 1% accuracy provides exceptional measurement, while selectable unit button provides the reading in easily recognizable units.
Range: 0 to 100 psi
Accuracy: 1.0% FS
Service: Liquids and compatible gases
Wetted Materials: Type 316L SS; Ceramic Ranges: Type 316L SS, ceramic, fluoroelastomer
Pressure Limits: 2X pressure range. Vacuum range max. pressure is 30 psig
Temperature Limits: 30 to 120°F (-1 to 49°C)
Thermal Effect: 0.05% FS/°F
Size: 2.62in OD x 1.52in deep
Process Connection: 1/4in male NPT
Display: 4-digit LCD (.425in H x .234in W digits)

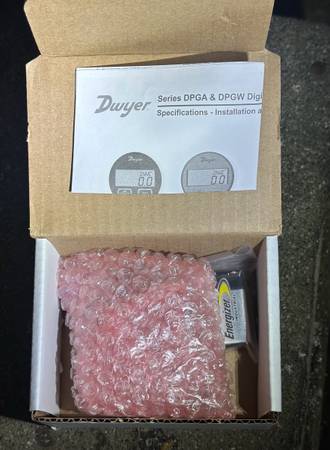

Power Requirements: 9V alkaline battery, included, user replaceable
Auto Shut-Off: 20 minute auto shut-off
Weight: 5.6 oz (160 g)
Push-button zero reduce installation and service time
High accuracy provides exceptional measurement for minimizing costly out of specification conditions
Selectable unit button provides reading in easily recognizable units
Applications:
Process applications
Process start-up
OEM applications
